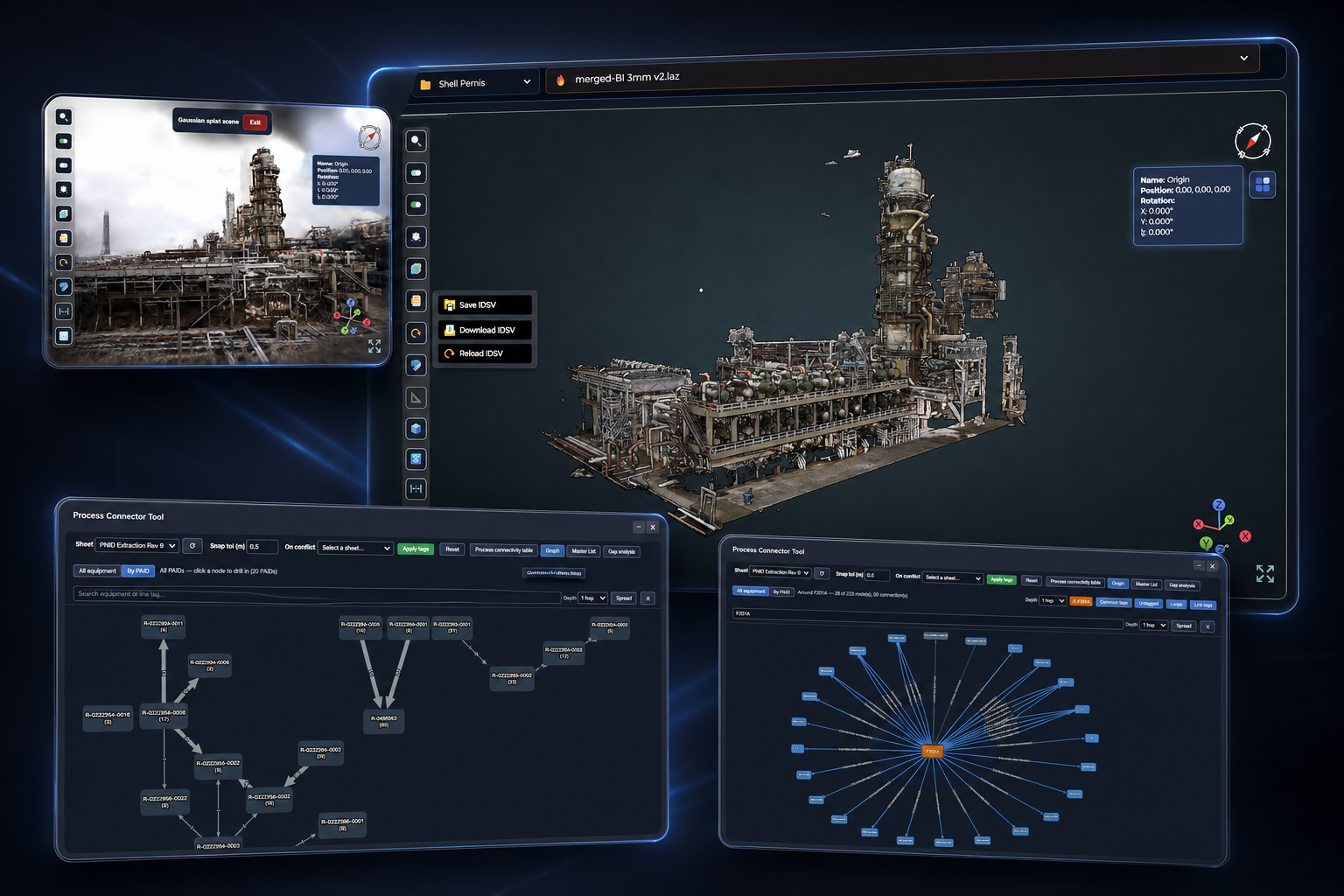

Turn scans into engineering-ready 3D models.
IDS™ Halo accelerates the path from reality capture to CAD - transforming point clouds and captured site conditions into structured 3D models your teams can review, verify, and use downstream.
Scan
Model
Verify
Engineer
From captured reality to a usable model.
Scanning tells you what exists.
IDS™ Halo turns that captured reality into an intelligent CAD model - reducing the manual work between the field and CAD.
→
01
Capture & process

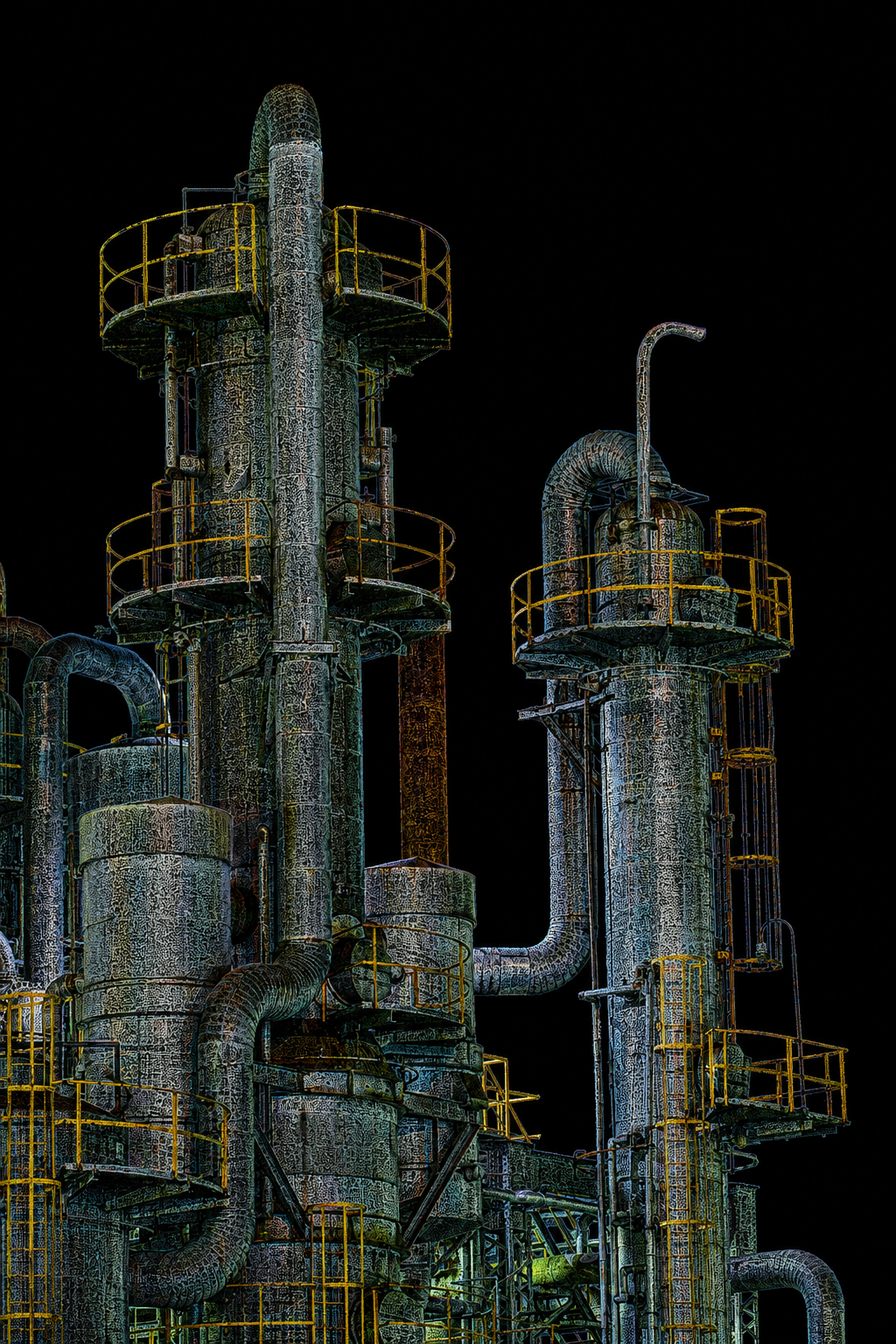

Bring in point clouds, LiDAR, panoramic imagery, and other reality-capture data.
POINT CLOUD · LiDAR · 3DGS
→
02
Generate the model
Extract the geometry you need and build a structured CAD model from the scan.
GEOMETRY · STRUCTURED CAD
→
03
Review & Verify
Compare the model against captured site conditions and identify discrepancies before it moves downstream.
MODEL VERSUS SCAN
→
04
Enrich when needed
Connect engineering documents, tags and structured data through IDS™ DataOps.
OPTIONAL · IDS™ DATAOPS
→
05
Deliver
Move the verified model into the engineering and design tools your teams already use.
REVIT · E3D· IFC
One workflow. One evolving digital asset.
Get to CAD faster.
Traditional scan-to-model workflows rely on significant manual reconstruction, disconnected tools and repeated review cycles.
IDS™ Halo brings capture, modelling, and verification into one connected workflow - so teams spend less time rebuilding existing conditions and more time using them.
30 - 60 %
Scan
Model
Verify
Engineer

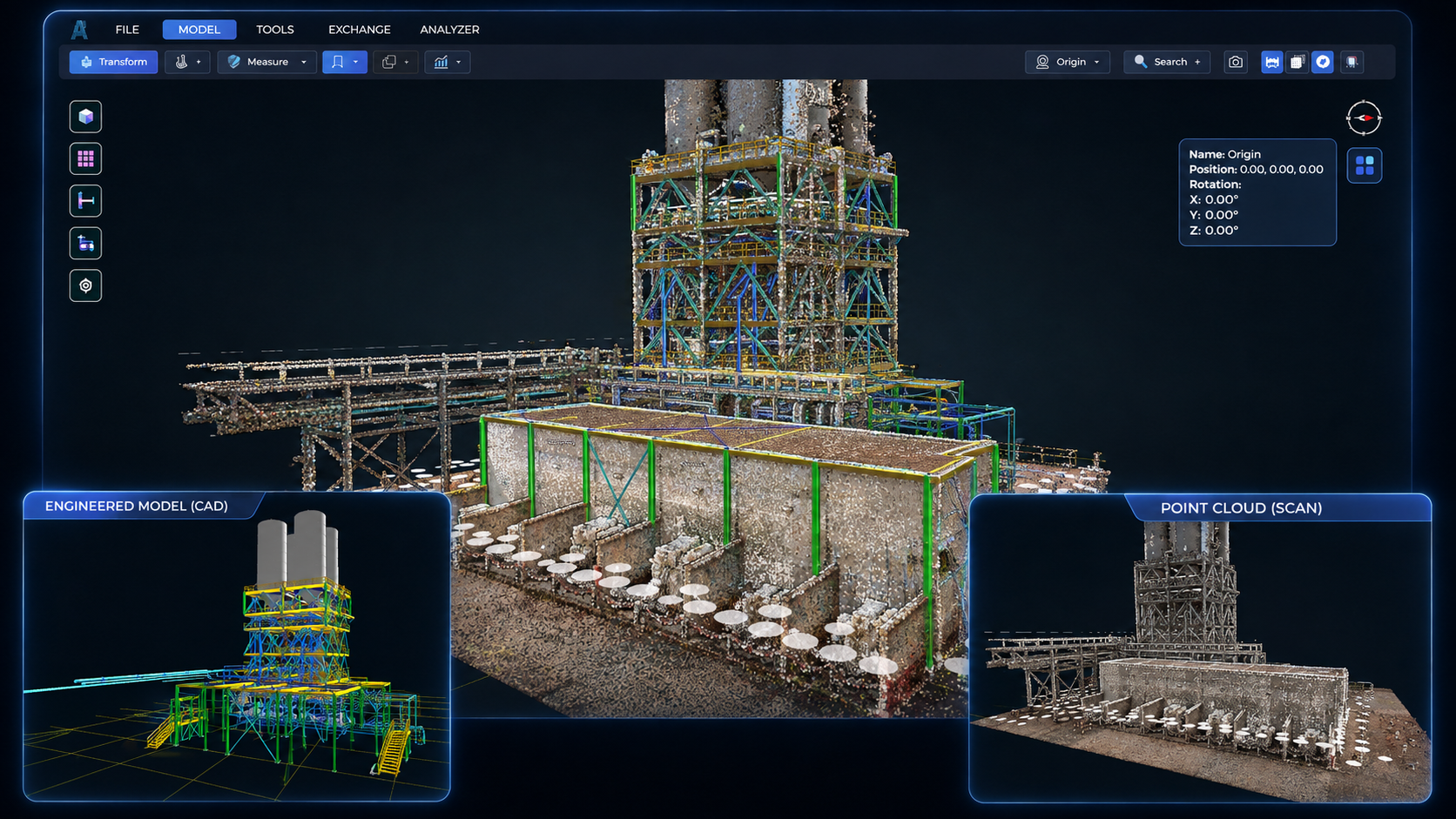

Know the model reflects reality.
A 3D model is only useful if teams can trust what it represents.
IDS™ Halo lets teams review generated CAD against captured site conditions, making differences visible before design and engineering decisions are made.
Verified CAD model
A usable representation of what is actually installed.
Visible discrepancies
Identify where the model and captured reality do not align.
Traceable context
Keep the model connected to the information used to create and verify it.
Built for the people turning reality into engineering.
01
Digital transformation leaders
02
Project & engineering teams
03
Modellers & designers
04
Reviewers
More than a 3D model.
IDS™ Halo creates the foundation for an intelligent digital asset.
Start with captured reality. Build the geometry. Verify what exists. Then connect documents, tags, and engineering data as the asset moves through IDS™.
Reality capture → IDS™ Halo → Intelligent CAD model
Engineering documents → IDS™ DataOps→ Structured & governed data
Verified geometry + engineering context → Intelligent digital asset
Continue downstream.
The model IDS™ Halo creates becomes the starting point for everything - not another file that has to be rebuilt.
IDS™ Core
Reality capture and point-cloud processing through CAD extraction, P&ID extraction, tagging and model verification.
VERIFIED MODEL → ENGINEERING & DESIGN
IDS™ DataOps
Turn engineering documents into structured, governed engineering data.
DOCUMENTS → STRUCTURED DATA
IDS™ Viewer
Open the model to everyone downstream to design.
MODELS → COLLABORATION & DECISIONS
From scan to engineering, faster.
Turn captured reality into a verified 3D model your teams can actually use.
